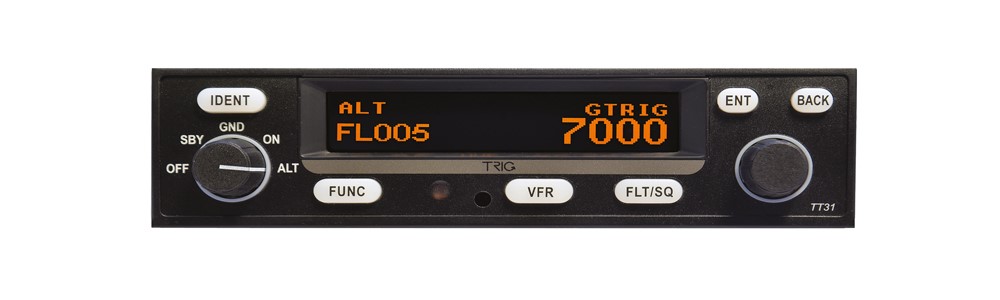

TRIG TT31 ADS-B 240W TRANSPONDER
- Improved retrofit performance – ‘plug and play’ Mode S installation for KT76A, KT76C and KT78A
- Certified for IFR / VFR flight
- Amongst the lowest power consumption in class
- TIS traffic capabilities – portable and/or panel mounted avionics
- Backlit LED display
- No cavity tube – no warm up time required (no need for dropper resistors)
- Free European Minor Change approvals
- Free FAA ADS-B STCfor 650 aircraft types
- Software provides the widest compatibility with third party avionics
- Unbeatable value and quality – designed and manufactured in the U.K.
- Two year worldwide warranty
The TT31 is a highly efficient class leading transponder. It’s easy to use and operate, with a clear bright display and simple user interface. Features include a flight timer, stop watch and altitude monitor (can alert you of a deviation from your selected altitude). The TT31 includes data link support for the U.S. TIS traffic service, up-linked from approach radars. TIS traffic can be displayed on a variety of portable and panel mount displays, coverage includes most US terminal areas. The latest performance upgrades are available during the life of your product via Trig software upgrades, avoiding the need for expensive hardware upgrades.
MODE – S AND ADS-B
Mode A and C transponders are now being replaced by Mode S transponders, this technology is optimised for tomorrow’s airspace requirements. The introduction of ADS-B surveillance technology means the modern transponder has now become the hub of future airspace compliance requirements. Here the TT31 remains the class leader, it was the world’s first transponder certified to TSO-C166b. This is latest FAA standard for the U.S. 2020 ADS-B mandate and demonstrates Trig’s advanced levels of compliance. It’s worth remembering that to receive all ADS-B In traffic transmissions in the U.S. the FAA requires a functioning certified ADS-B Out device.
The TT31 uses half the electrical power of legacy transponders, whilst still transmitting at a higher signal power, its efficient design reduces waste heat in the avionics stack. This reduces the load on the aircraft electrical system improving overall reliability. The flexible power input means that both 14 and 28 volt systems can be used without special configuration or dropper resistors (we recommend that any dropper resistor fitted for a previous transponder should always be removed). The TT31 is compatible with both parallel and serial altitude encoders; it can even act as a serial altitude repeater to provide a convenient altitude source for your GPS.
